Aluminium Lattice Beam


What is an aluminium lattice beam?

A lattice beam consists of parallel longitudinal tubes united by diagonal tubes.


Length options

Lattice beams manufactured and supplied by Apollo Scaffold Services are available in a range of lengths from 1000mm to 8000 mm.


We can also supply non standard lengths made to order (e.g. 19ft 6ins for shipping containers), please contact us for more information.


Lattice beam specification

Ladder Beam
  Manufactured in the UK from 6082 T6 extruded aluminium
  Fully compatible with other 450mm deep beams
  Standard lengths: 2, 4, 6 and 8 metres
  Non-standard lengths made to order (e.g. 19ft 6” for shipping containers)
  Massive strength to weight ratio - incorporates extruded oval crossmembers
  Independent Consulting Engineers reports
  Conforms to BS 8118 & BS EN 1999-1-1
  Monthly proof load testing of random sample beams


Technical Documents

Lattice Beam Calculation to BS EN 1999-1-1  Lattice Beam Calculation to BS EN 1999-1-1

Lattice Beam Technical Data Sheets  Lattice Beam Technical Data Sheets

Spigot Connection to Lattice Beams  Spigot Connection to Lattice Beams


Apollo Scaffold Services can supply lattice beams nationwide, please contact us for further information.


Please contact us for latest prices and availability.


Take a look at some of our previous projects below, to see the full capabilities of Lattice Beams manufactured and supplied by Apollo Scaffold Services.

Lattice Beam Image Gallery

  • Apollo Scaffold Services Lattice Beam - Image 1
  • Apollo Scaffold Services Lattice Beam - Image 2
  • Apollo Scaffold Services Lattice Beam - Image 3
  • Apollo Scaffold Services Lattice Beam - Image 4

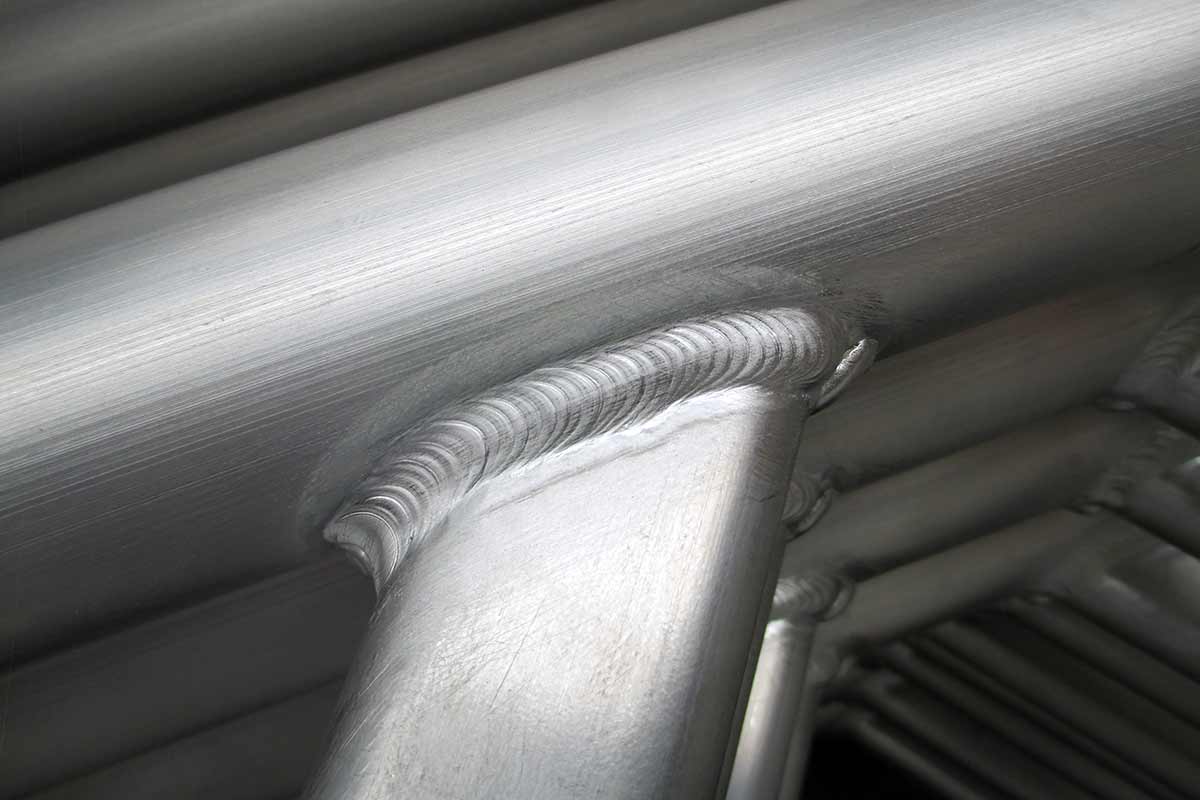

  • Apollo Scaffold Services Lattice Beam - Image 5

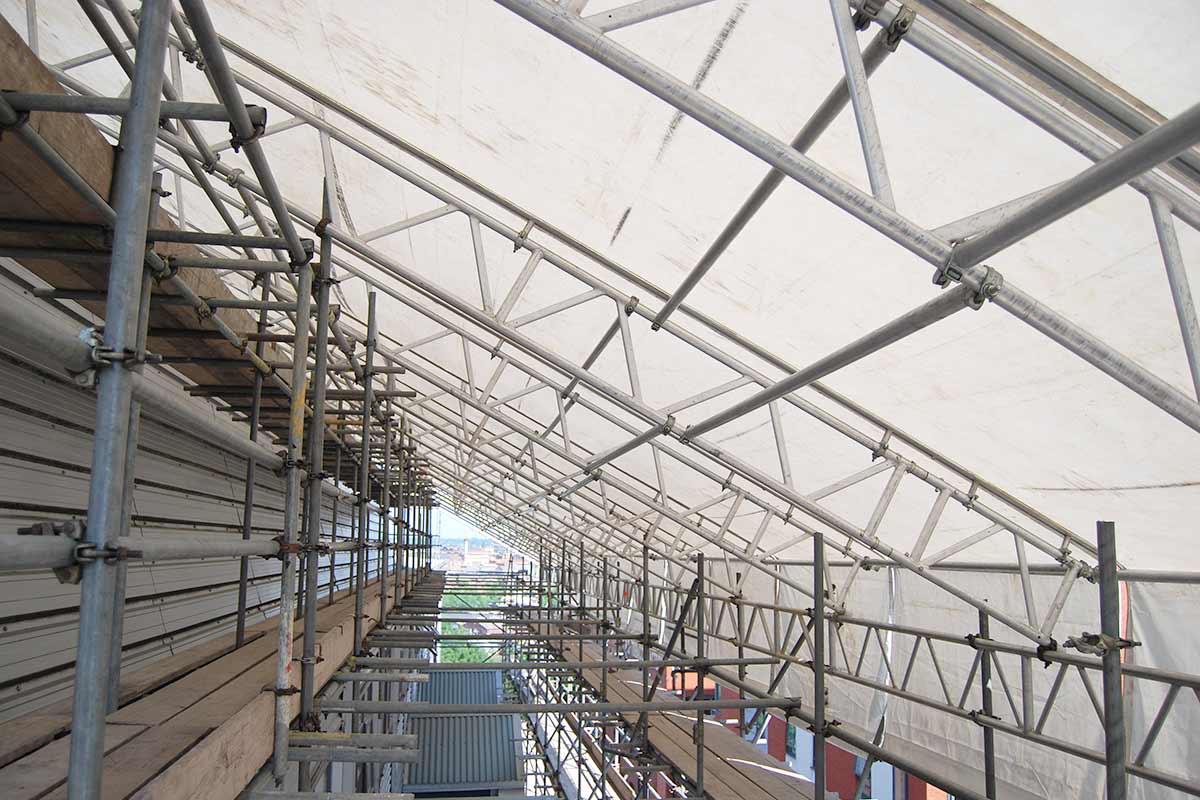

  • Apollo Scaffold Services Lattice Beam - Image 6

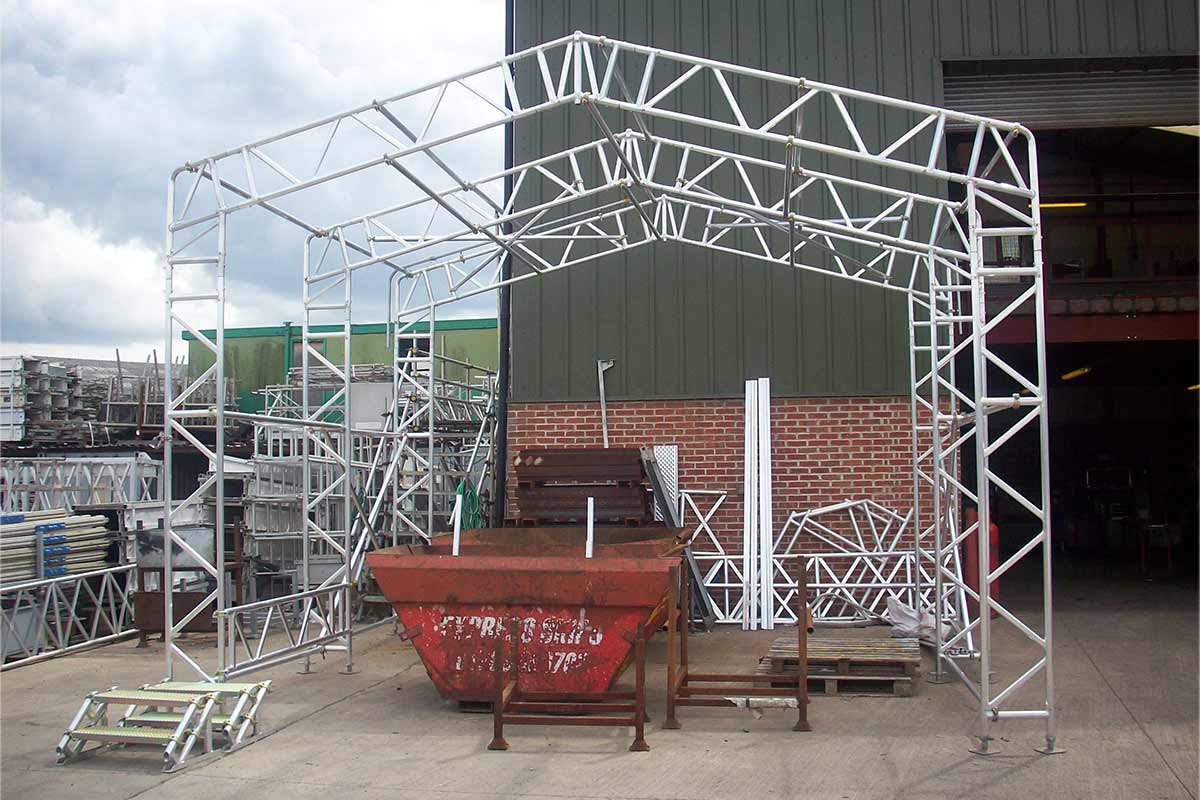

  • Apollo Scaffold Services Lattice Beam - Image 7
  • Apollo Scaffold Services Ladder Beam - Image 8

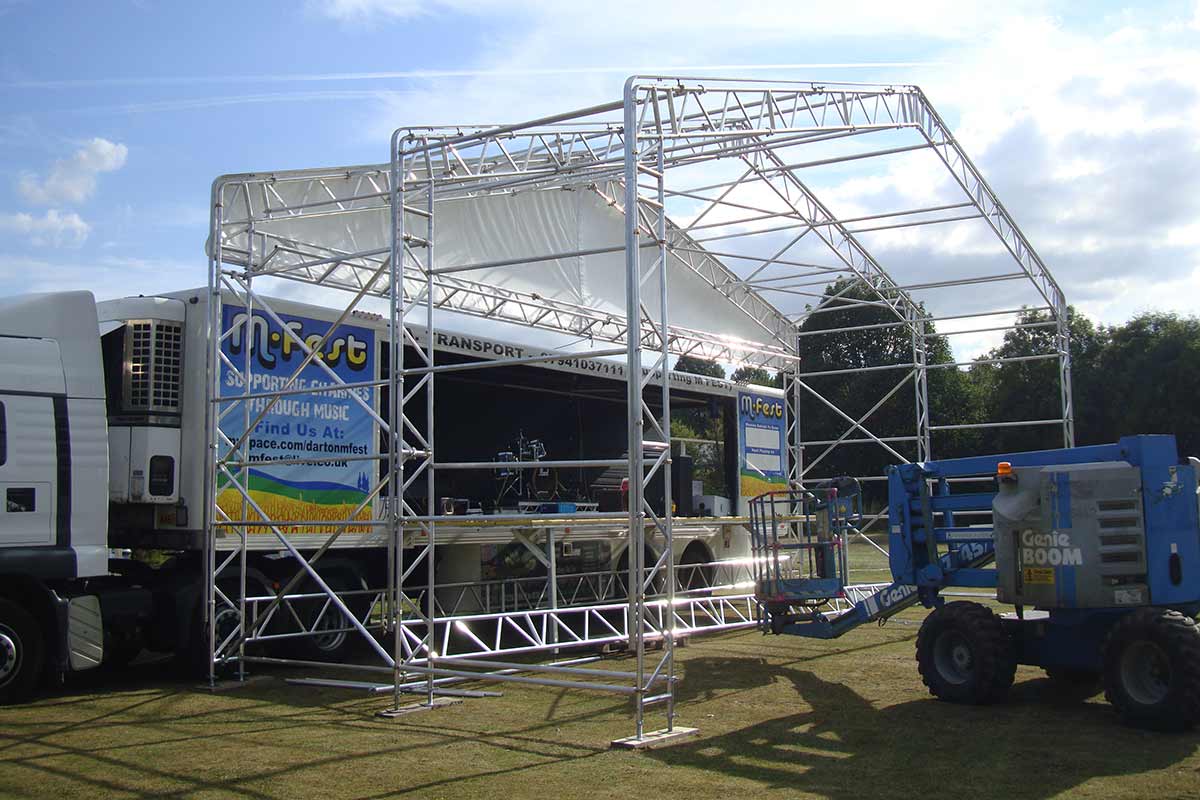

  • Apollo Scaffold Services Ladder Beam - Image 9
Apollo Scaffold Services Lattice Beam - Image 1 Apollo Scaffold Services Lattice Beam - Image 2 Apollo Scaffold Services Lattice Beam - Image 3
  Apollo Scaffold Services Lattice Beam - Image 4 Apollo Scaffold Services Lattice Beam - Image 5 Apollo Scaffold Services Lattice Beam - Image 6 Apollo Scaffold Services Lattice Beam - Image 7 Apollo Scaffold Services Lattice Beam - Image 8 Apollo Scaffold Services Lattice Beam - Image 9
